Test the previous circuit:
This circuit function well but we can't use this circuit because it can't recharge the battery.Beside this circuit is only to test our knowledge about the solar.
Sunday, February 26, 2012
Thursday, February 16, 2012
Week 3
Presentation for final year project
On 16th february 2011,presentation for final year project was held for let the student present about the progress of their final year project at Research Postgraduate Studies (RPS) Meeting Room, Level 6 .There are three lecture was invited to assess the student who present their final year project progress.The purpose of the presentation is to identify the FYP current status and most importantly to have some external inputs & ideas towards the project. Main area to be discussed is Project Ideas, Concept, Project Status, Results (if any..),and Planning.
On 16th february 2011,presentation for final year project was held for let the student present about the progress of their final year project at Research Postgraduate Studies (RPS) Meeting Room, Level 6 .There are three lecture was invited to assess the student who present their final year project progress.The purpose of the presentation is to identify the FYP current status and most importantly to have some external inputs & ideas towards the project. Main area to be discussed is Project Ideas, Concept, Project Status, Results (if any..),and Planning.
Friday, February 10, 2012
Week 2
Test the solar circuit that got from internet
Test the circuit
that I got from the internet.(http://electroschematics.com/6057/solar-birdhouse-light-circuit/).
The circuit name is Solar Birdhouse.To understand how the solar circuit work,I
constructing the simple solar Birdhouse.Below this is the picture circuit that I
construct:
The circuit above
using the battery 12V/4.5Ah to turn on it.But this time I not try the solar
panel since I constructing the circuit at night.The problem that I got when
testing the circuit is
a) The LED became dim
when I put more the 4 LED.
b) The LED that I
buying from the store not working well.
c) The multimeter
broke
This is the BirdHouse
circuit diagram:
Later I will testing
the solar panel since it still night .
Thursday, February 2, 2012
Week 1
Buy the component
Go to jalan pasar to buy component for solar circuit.
Go to jalan pasar to buy component for solar circuit.

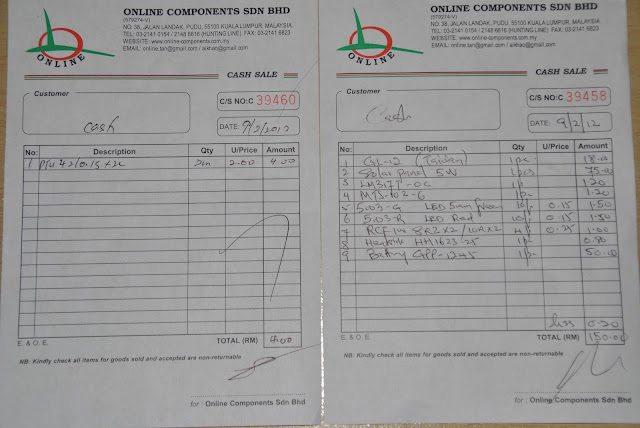

Solar circuit component receipt
These are some parts
that I buy for test the solar circuit:
Specification of a typical 18V/5W solar
panel:
Maximum Power (Pm)
:5W
Working Voltage
(Vmp):18V
Working Current (Imp)
:0.28A
Open Circuit Voltage
(Voc) :21.2V

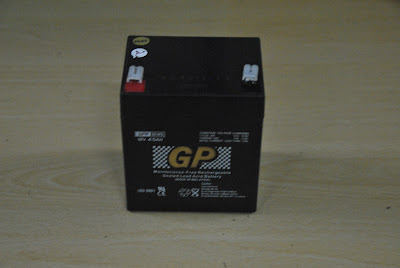

12V/4.5Ah
rechargeable battery
